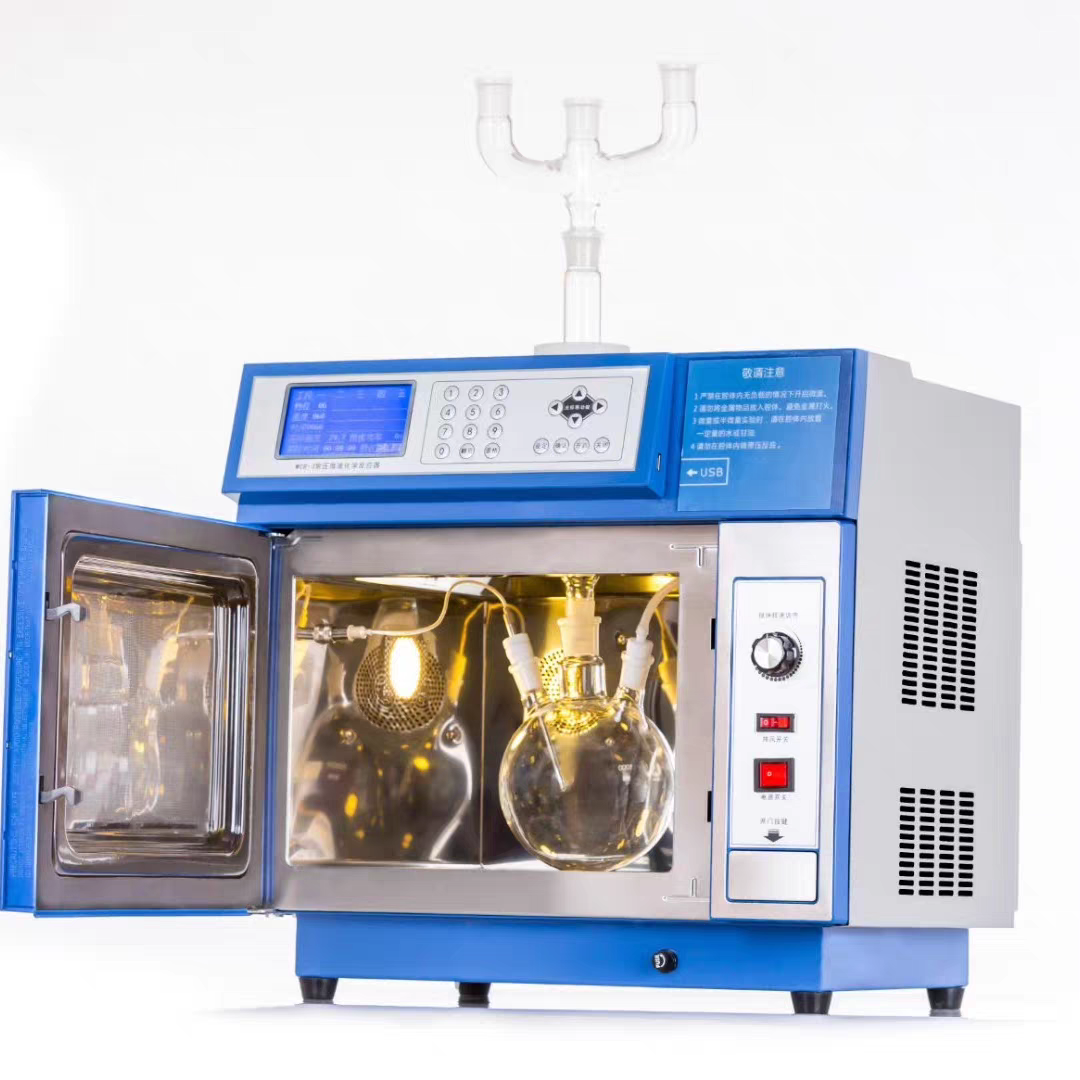

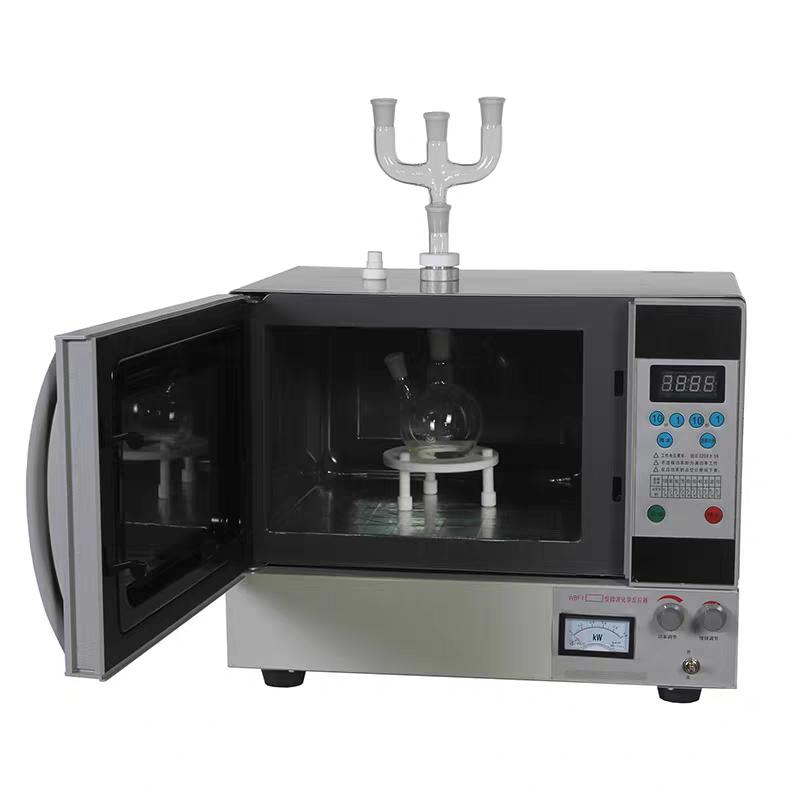

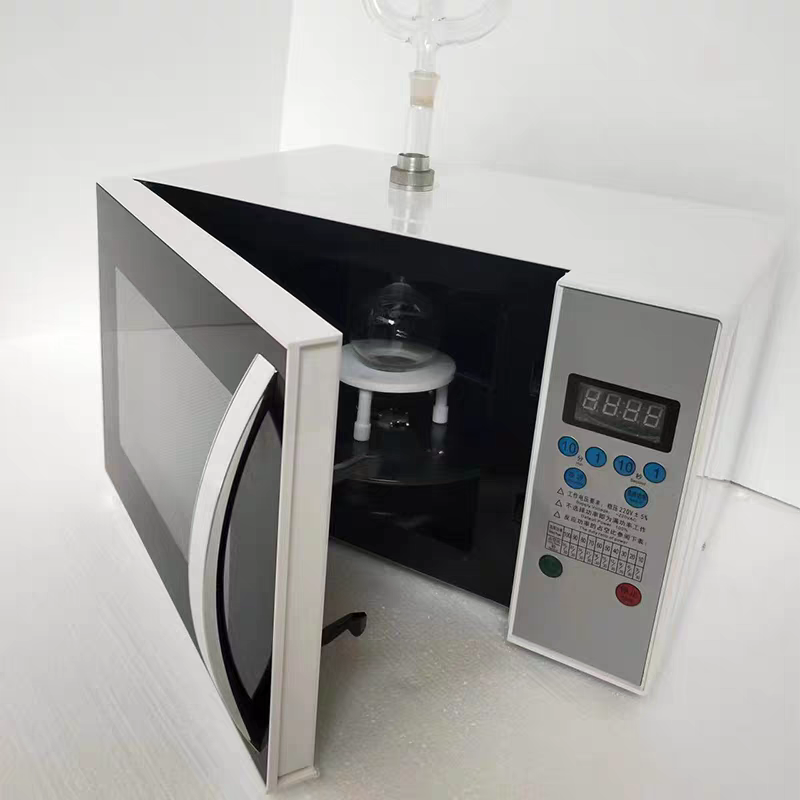

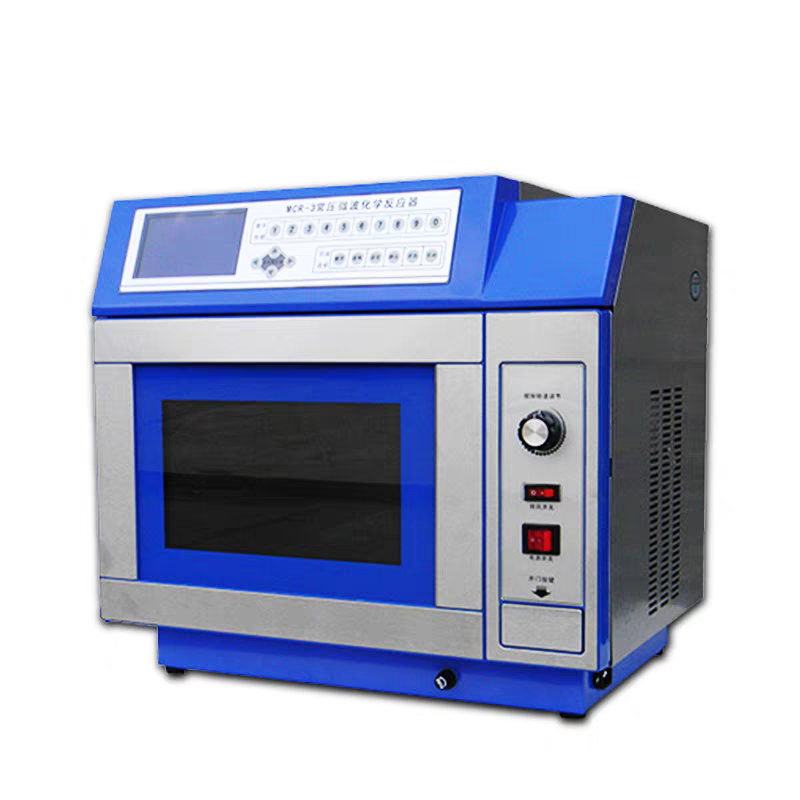

Microwave Chemical Reactor

Due to the microwave thermogenic effect, non-thermogenic effect, induced catalytic effect and other mechanism of action of the special characteristics of the chemical field, especially in the field of organic synthesis has brought a great impact. Microwave application in organic synthesis reaction, reaction speed than the conventional way to accelerate ten to thousands of times. And it can synthesize substances that are difficult to synthesize by conventional methods. So far, the research has been studied and achieved results in the following: Diels-Alder cycloaddition reaction, rearrangement reaction, esterification reaction, Pekin reaction, alkylation, oxidation, substitution, condensation, addition and polymerization and so on. They are widely used in the fields of materials, pharmaceuticals, chemicals and related teaching and research.

Get in touch

For technical consultation on our products, specific consultation on solutions and other matters, please fill out the form below and click the “Submit” button. We will contact you as soon as possible.

Please enable JavaScript in your browser to complete this form.
237 People watching this product now!

Product Description

  • Rapid heating. Microwave energy can propagate in an object at the speed of light (3×1010cm/s), and in an instant (within about 10-9 seconds), it can convert microwave energy into thermal energy of a substance and penetrate the thermal energy into the heated substance without the need of heat conduction process.
  • Fast response capability. It can quickly start, stop and adjust the output power, easy to operate.
  • Uniform heating. Heating inside and outside at the same time.
  • Selective heating. High medium loss, high temperature after heating and vice versa.
  • High heating efficiency. Due to the heated object’s own heat, there is no heat conduction process for heating, so there is no heat loss in the surrounding air and the heating box.
  • Strong heating penetration. Heat penetration depth and wavelength in the same order of magnitude, up to a few centimeters to a dozen centimeters, while infrared heating for surface heating, penetration depth of only micron order of magnitude.
ModelWBFY-201WBFY-205MCR-3
Rated power consumption(W)1100≤1300W
Rated maximum output power(W)750650≤750W
(Continuously adjustable automatically)
Maximum input current(A)7.85.9
Operating voltage(V)220
Frequency(Mhz)2450±50Adjustable size2450MHz±15Hz
Chamber size(mm)290*295*190290*295*190330*330*235
Overall size (mm)480*340*280480*340*380510*470*400
