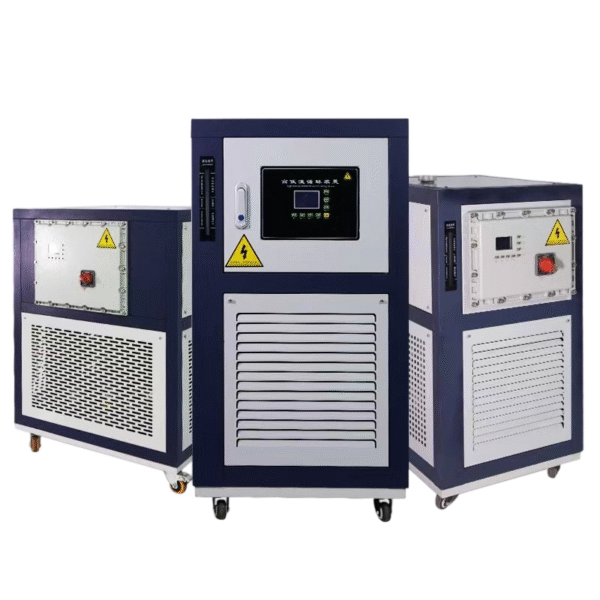

Heating & Cooling Circulator
Heating & Cooling Circulator
Click to enlarge

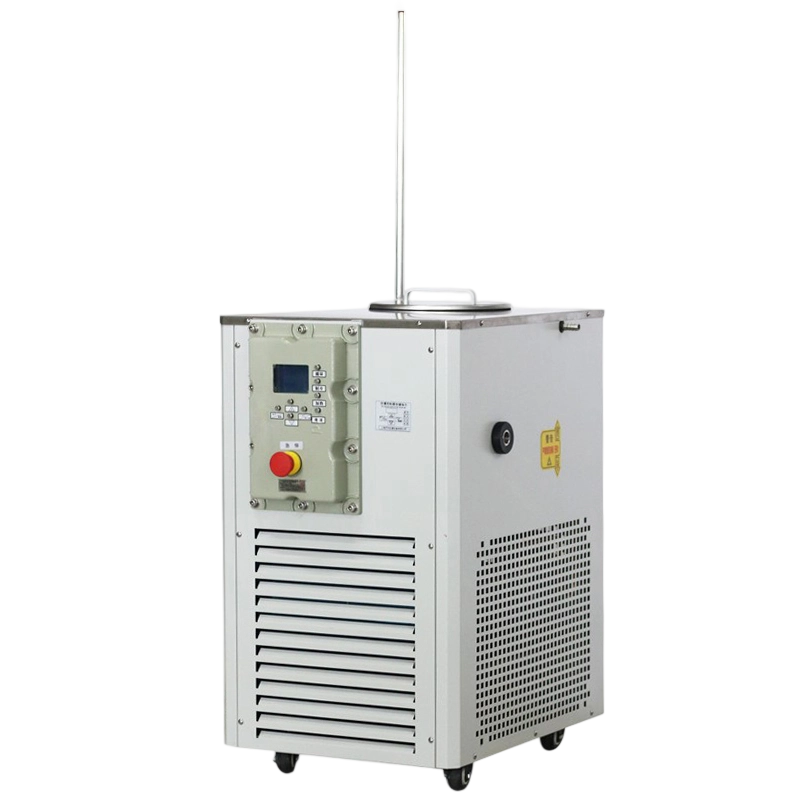

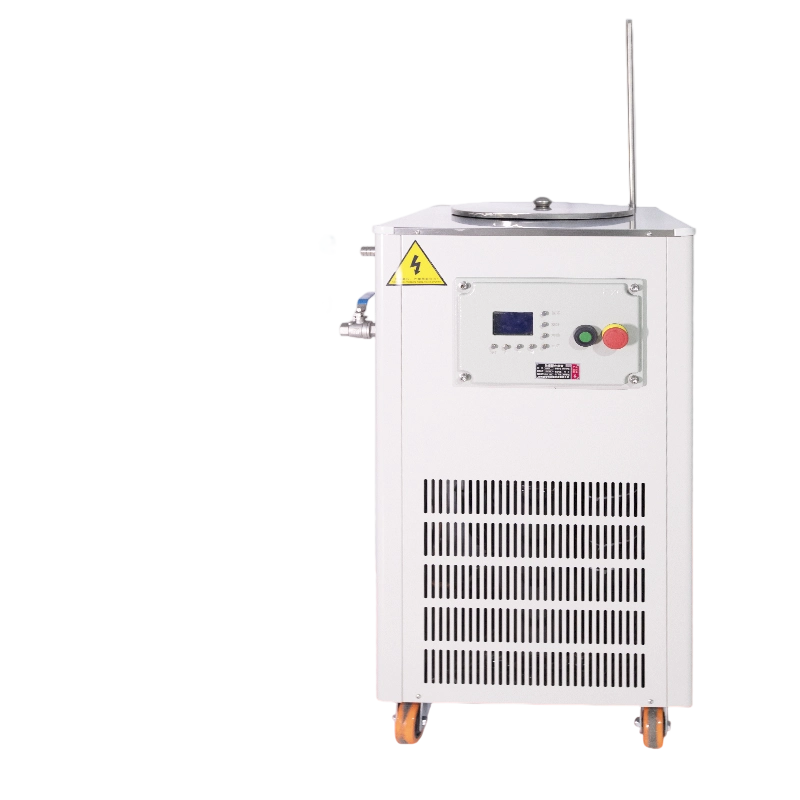

Low-temperature constant temperature circulator

The low-temperature constant temperature bath is a low-temperature constant temperature liquid circulation equipment produced by our company through improved manufacturing and active absorption of advanced technologies from Germany and Japan. It has the functions of providing low-temperature constant temperature liquid bath, low-temperature constant temperature condensation cooling, low-temperature constant temperature storage, and establishing a second low-temperature constant temperature field. Suitable for low-temperature experiments in fields such as scientific research, biology, physics, medicine, and chemical engineering. It can replace dry ice and liquid nitrogen for low-temperature reactions and provide low-temperature conditions for related equipment. It can also be used as a low-temperature constant temperature water tank for viscosity measurement. It has the characteristics of bottom magnetic stirring, two-stage stirring, making the temperature in the stainless steel tank more uniform, intelligent temperature control, and precise.

Get a Quote

Get in touch

For technical consultation on our products, specific consultation on solutions and other matters, please fill out the form below and click the “Submit” button. We will contact you as soon as possible.

Please enable JavaScript in your browser to complete this form.
262 People watching this product now!

Product Description

  • The refrigeration system is a fully sealed air-cooled imported original compressor.
  • Digital temperature control, easy to operate, eye-catching;
  • Can be matched with various instruments (rotary evaporator, fermentation tank, chemical reaction kettle, freeze-drying equipment, biopharmaceutical reaction kettle, etc.); Large cooling capacity and fast cooling speed greatly improve work efficiency;
  • High temperature control accuracy, easy operation, temperature setting and measurement are both displayed digitally, clear and intuitive.
  • The sink is made of stainless steel material, which is beautiful and corrosion-resistant.
ModelLiquid storage capacity (L)No load adjustment range (℃)Temp. fluctuation (℃)Cooling capacity (W)Power supply(V/HZ)Circulating pump flow (L/min)Loop inerface
HLA-5/105-10-98±0.11248-319110/22020L/minφ285(mm)
HLA-5/20-20-981248-319
HLA-5/30-30-982653-627
HLA-5/40-40-981956-602
HLA-5/60-60-981956-330110/220/380
HLA-5/80-80-RT1956-180
HLA-5/120-120-RT3808-160
HLA-10/1010-10-981814-884110/220
HLA-10/20-20-982653-813
HLA-10/30-30-981956-1022
HLA-10/40-40-982548-748
HLA-10/60-60-983599-510110/220/380
HLA-10/80-80-RT3599-160
HLA-10/120-120-RT4917-120
HLA-20/2020-20-983175-990110/220
HLA-20/30-30-982548-1350
HLA-20/40-40-983729-989110/380
HLA-20/60-60-984917-510110/220
HLA-20/80-80-RT7748-230220/380
HLA-20/120-120-RT7748-160
HLA-30/2030-20-986169-1825110/220φ310(mm)
HLA-30/30-30-983729-1801110/220/380
HLA-30/40-40-984749-1140
HLA-30/60-60-984917-160220/380
HLA-30/80-80-RT7748-180
HLA-30/120-120-RT10284-210
HLA-40/2040-20-983729-989110/22030L/minφ360(mm)
HLA-40/30-30-984917-2468220/380
HLA-40/40-40-987748-2178
HLA-40/80-80-RT3178-273
HLA-40/120-120-RT3382-247
HLA-50/1050-10-98±0.59348-4188
HLA-50/20-20-9815706-3694
HLA-50/30-30-987469-3540
HLA-50/40-40-9810284-2565
HLA-50/60-60-982700-1442
HLA-50/80-80-RT2540-1210
HLA-50/120-120-RT2482-1298
HLA-80/2080-20-9815706-360440L/minφ450(mm)
HLA-80/30-30-988762-1941
HLA-80/40-40-9810284-1631
HLA-80/80-80-RT10284-2565
HLA-80/120-120-RT10284-1735
HLA-100/20100-20-9811245-2100
HLA-100/30-30-9815706-3694
HLA-100/40-40-9810284-2565
HLA-100/80-80-RT105706-3273
HLA-100/120-120-RT105705-2175
