●Original nozzle, high efficiency.
●Color large touch screen operation, combining fully automatic control and manual control, with Chinese and English panels and parameter LCD display.
●Real time PID constant temperature control technology, accurate temperature control, heating and temperature control accuracy ± 1 ℃.

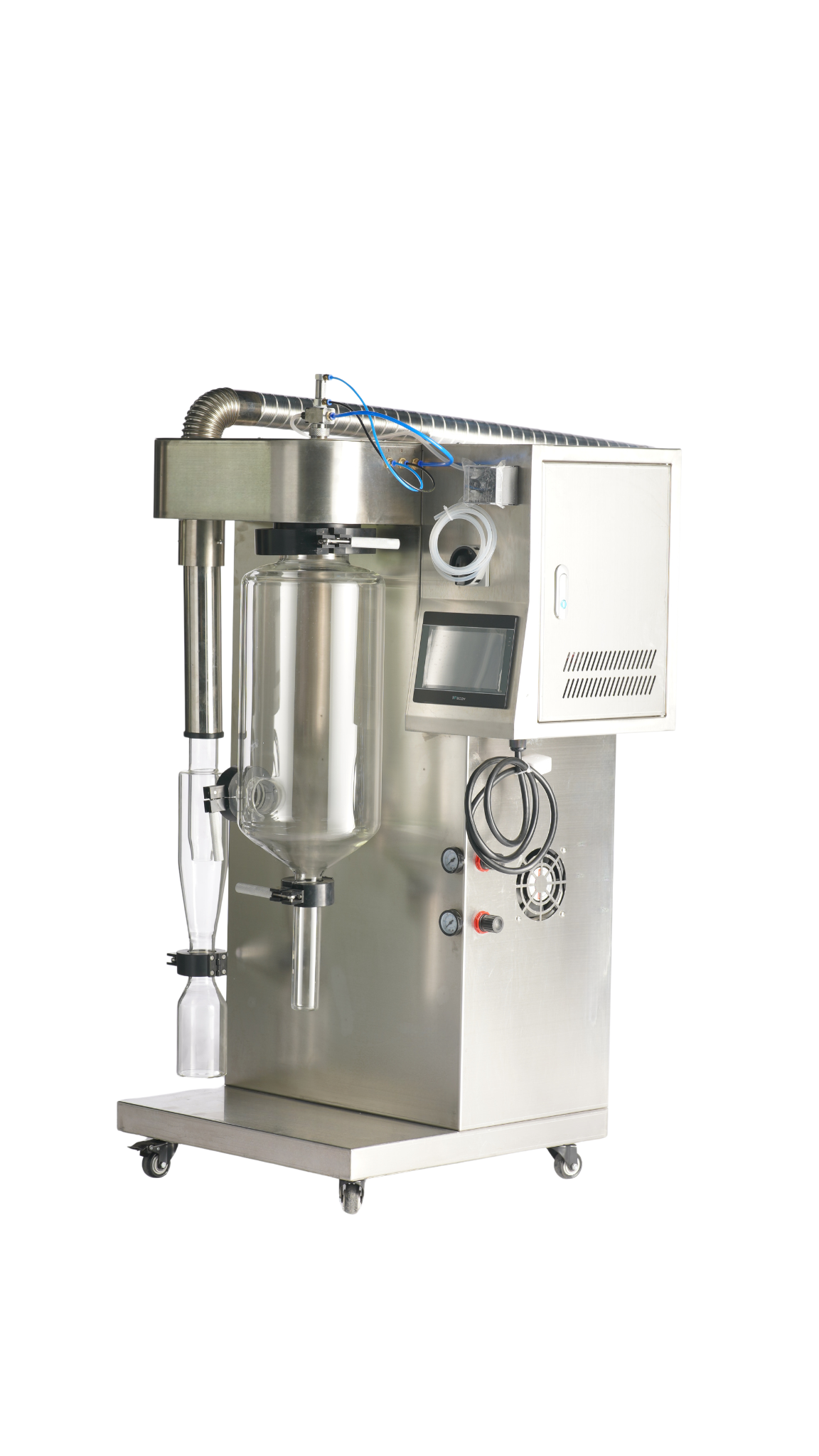

● The spray, drying and collecting device is made of transparent, high-quality, high-temperature resistant high borosilicate glass, and the whole process of spray drying experiment is visible.
● The atomization structure of two fluid spray is made of high-precision 316 stainless steel, and the particle size of the powder is normally distributed, with good fluidity.
The jet injector automatically clears (needle through) and has an adjustable frequency. When the nozzle is blocked, it will automatically clear to ensure the continuity of the experiment.
The feeding amount can be adjusted through the feeding peristaltic pump.
● Unique protection function, the fan cannot start and the heater cannot start.
Equipped with an imported oil-free air compressor, the noise level is less than 50db.
The dried product has uniform particle size
| Model | XC-2L |
| Inlet air temperature: | Room temperature to 300℃ |
| Outlet temperature: | Room temperature to 140℃ |
| Water evaporation capaciy: | 0-2000ml/h |
| Stainless steel nozzle: | Nozzle diameter φ0.75mm |
| Display: | 7-inch LCD touch operation display |
| Real-time temperature control: | Error ±1℃ |
| Real-tme display temp.accuracy. | 0.1℃ |
| Fan: | 0.75KW (aluminum alloy supercharged) |
| Maximum drying air volume: | 105m³/h |
| Inverter power: | 0.75kW |
| Air compressor: | 0.55KW (oil-free) |
| Whole machine power: | 2.2KW/4.4kW/8.8KW 220V |
| Dimensions: | 650×500×1500mm |

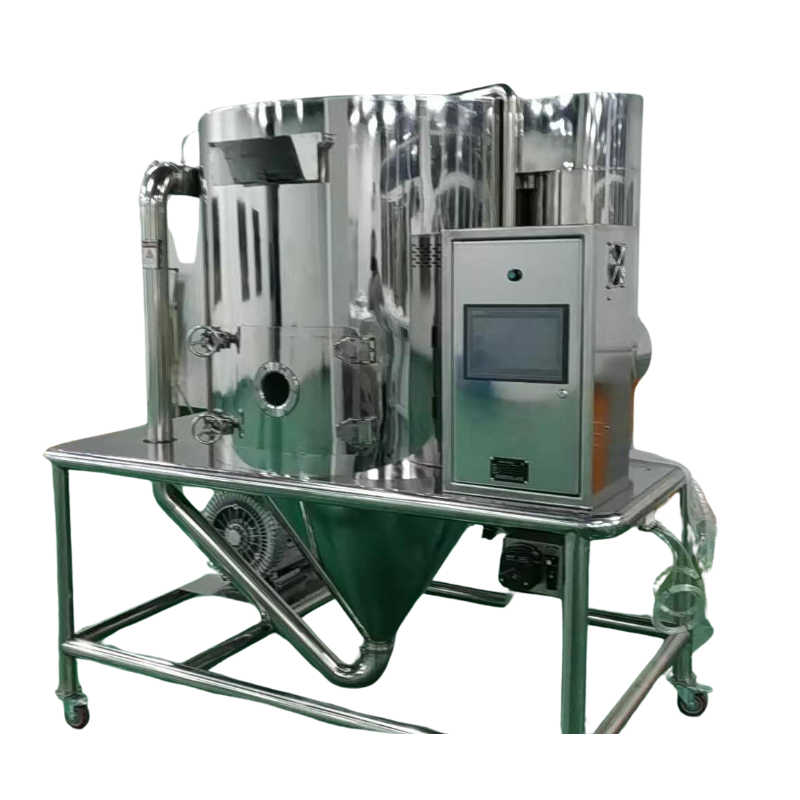

| Model | XC-3L | XC-5L | XC-10L | XC-15L | XC-20L | XC-30L |
| Inlet air temperature: | 50-300℃ | |||||
| Outlet temperature: | 30-150℃ | |||||
| Water evaporation capaciy: | 3kg/h | 5kg/h | 10kg/h | 15kg/h | 20kg/h | 30kg/h |
| Drive type of centrifugal spray head | electric | |||||
| Spray nozzle speed | 10000－36000rpm | |||||
| Spray disc diameter | φ52mm | φ80mm | ||||
| Heat source | electric | |||||
| Maximum power of electric heating | 6kw | 9kw | 18kw | 18kw | 27kw | 31.5kw |
| Total power | 7kw | 12kw | 22kw | 22kw | 33kw | 37kw |
| Power supply | 220V | 380V/50HZ | ||||
| Dimensions: | 1100×950×1600mm | 1150×1600×1800mm | 2100×1300×2200mm | 2400×1500×2700mm | 2400×1500×2900mm | 2400×1500×3600mm |
