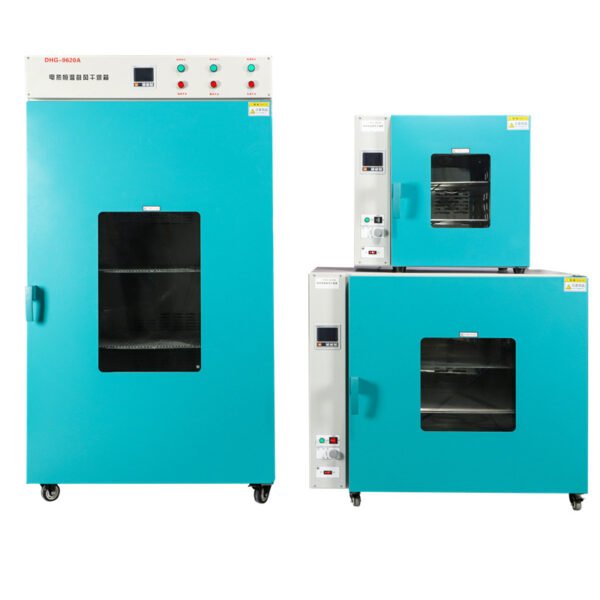

Blast Drying Oven
Blast Drying Oven
Click to enlarge

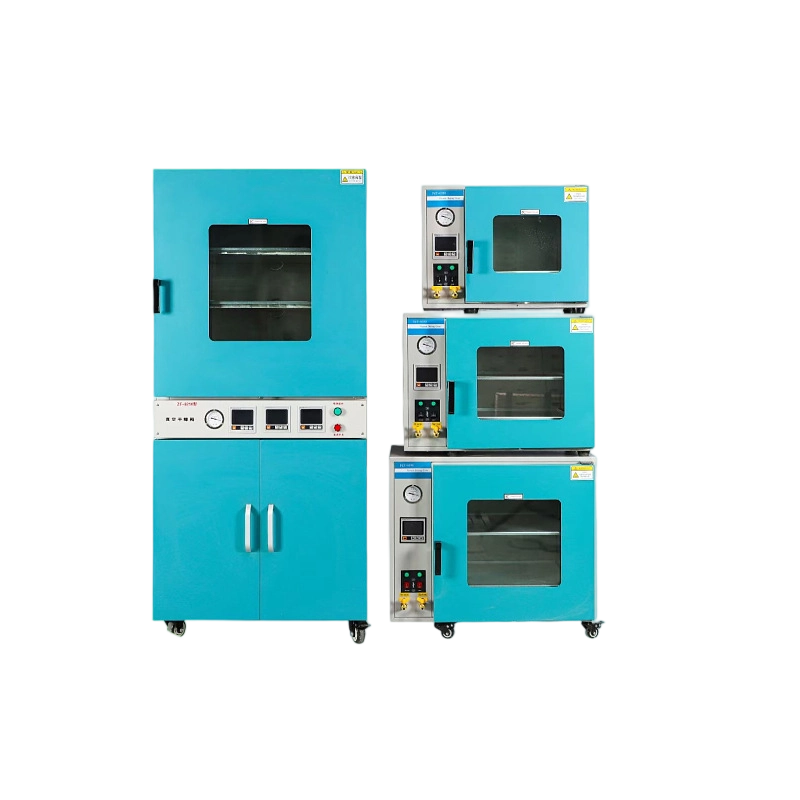

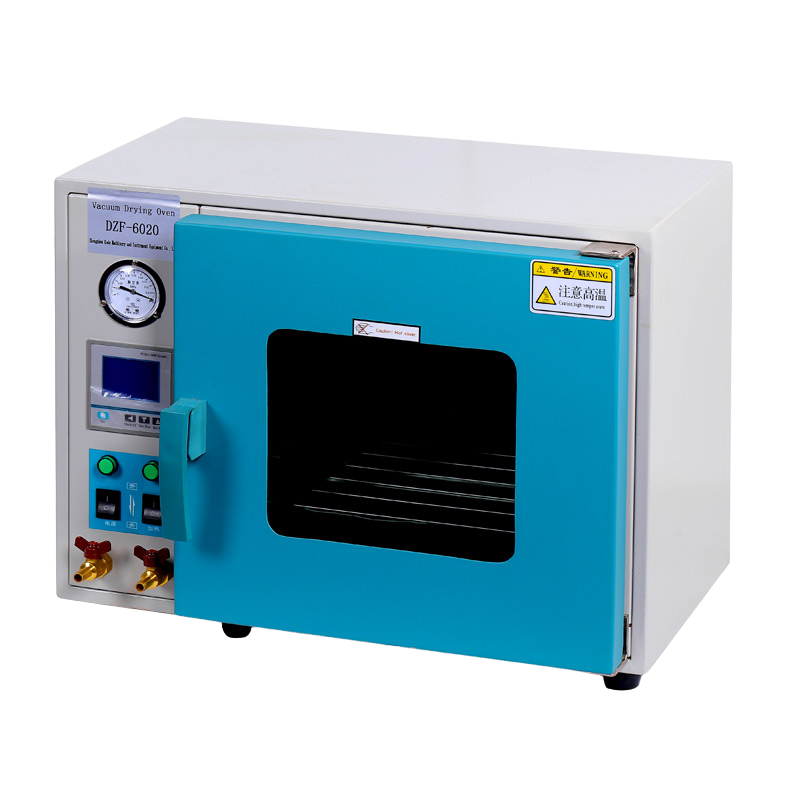

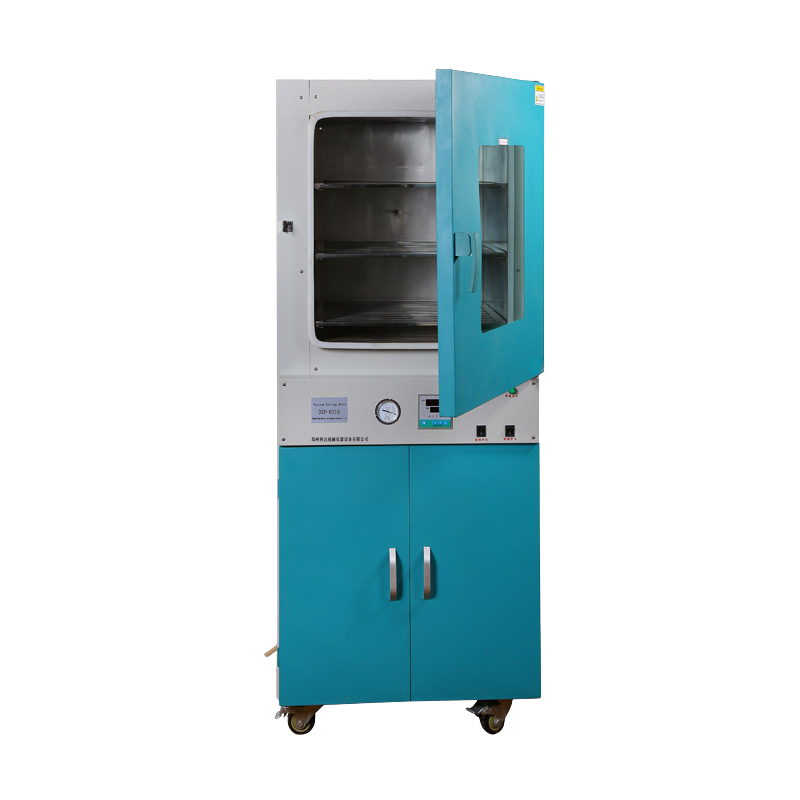

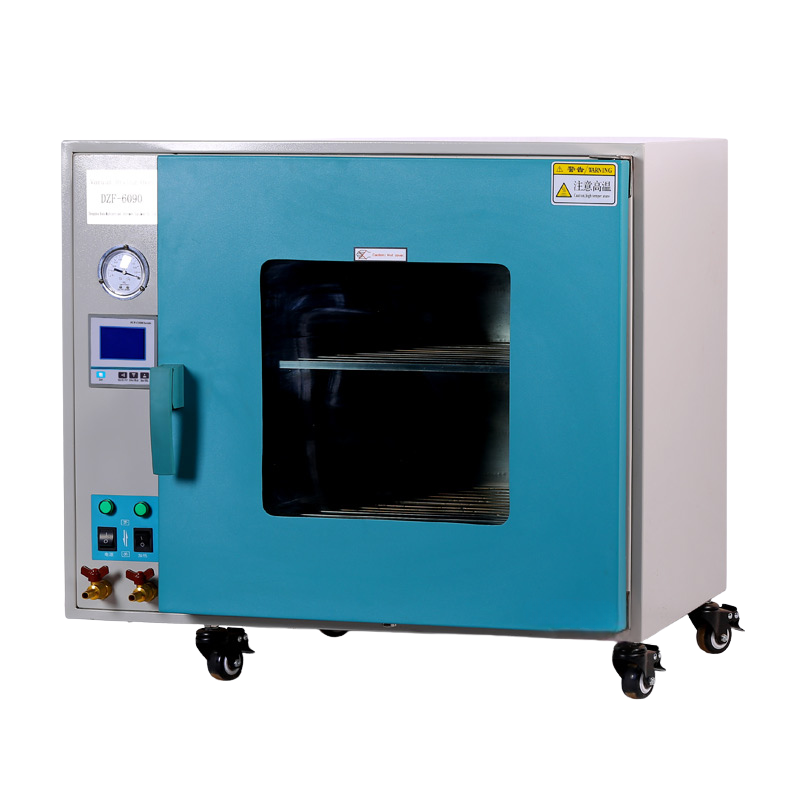

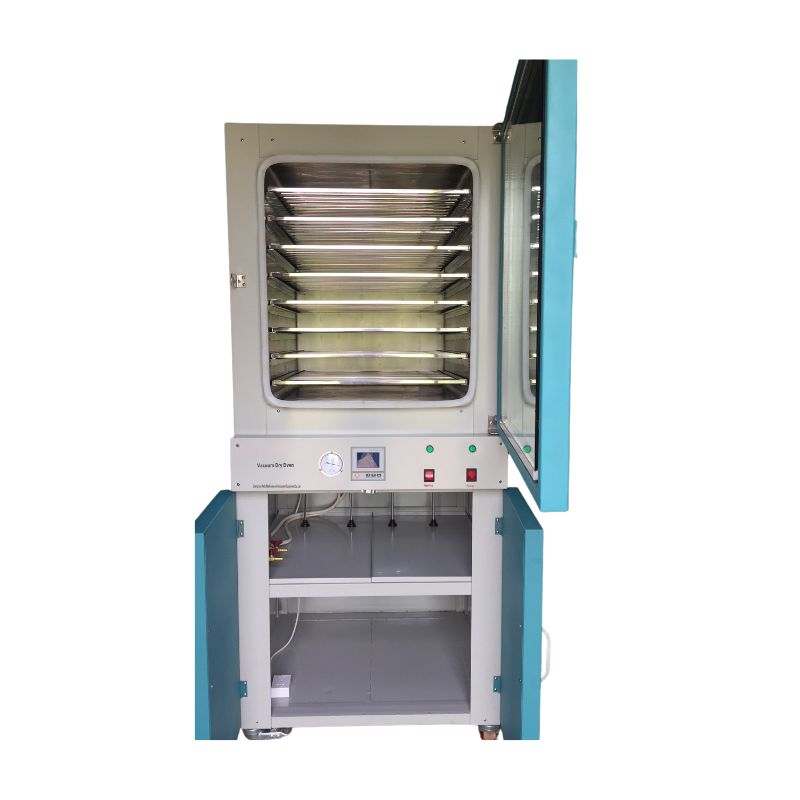

Vacuum drying oven

Microcomputer-controlled (with timing) new generation vacuum drying oven, based on the company’s years of successful experience in box heating, has creatively solved the “bottleneck” in the heat conduction process through continuous research and breakthrough of traditional technology – finding the perfect heat conduction method. Overview of uses: The vacuum drying oven is designed for drying heat-sensitive, easily decomposed and oxidizable substances, and can be filled with inert gas inside, especially for some complex components that can be quickly dried.

Get a Quote

Get in touch

For technical consultation on our products, specific consultation on solutions and other matters, please fill out the form below and click the “Submit” button. We will contact you as soon as possible.

Please enable JavaScript in your browser to complete this form.
293 People watching this product now!

Product Description

  • Rectangular studio, maximizing effective volume, microcomputer temperature controller, precise and reliable temperature control.
  • The tempered and bulletproof double-layer glass door allows for clear visibility of objects inside the observation studio, and can be filled with erotic gases.
  • The tightness of the box door closure can be adjusted, and the integrated synthetic silicon door sealing ring ensures high vacuum inside the box.
  • The studio is made of polished mirror stainless steel plates to ensure that the products are durable and easy to clean.
  • Storage, heating, testing, and drying can be carried out in an environment without oxygen or filled with inert gas, without causing oxidation.
  • The shortest heating time is reduced by more than 50% compared to traditional vacuum drying ovens.
ModelDZF-6010DZF-6020DZF-6050DZF-6090DZF-6210DZF-6500
Power Supply220V/50HZ
Temp. RangeRT+10~200°C
Max. Vacuum Degree0.098 Mpa
Temp. Stability±1.0°C
Temp. Analysis0.1°C
Working Temp.+5~40°C
Input Power (W)4008001400240040004000
Shelves (Pcs)1234
Number of shelves is customizable
Shell MaterialSpray-paint Anti-corrosion
Liner Material304 Stainless Steel(1 Cr~19Ni9Ti)
Time Range1~9999 min
Optional ConfigurationExplosion-proof
Chamber Capacity (L)8255590215215
Inner Dimension (W*D*H, mm)200*200*200300*280*300410*400*345450*450*450560*600*640630*810*845
Overall Dimension (W*D*H, mm)595*420*420630*510*475720*570*540770*620*700760*790*1800930*1050*1990
